How to Build a Simple Electric Circuit

Let's jump into the world of electricity! Knowing the basics is super important. Why? Because electricity makes our world go 'round. From the lights in your house to the phone in your pocket, it's everywhere. I'm going to show you how to build a simple electric circuit. It's perfect for beginners. Whether you're a student, a hobbyist, or just curious, you'll learn how to make your own circuit.

What is an Electric Circuit?

Okay, so what is an electric circuit? It's a closed loop. Think of it like a highway for electrons. It lets electric current flow. The loop has to be complete for electricity to work. If there's a break, the flow stops. Imagine a light switch. When it's on, the circuit is complete, and the light shines. When it's off? The circuit breaks, and the light goes out. Knowing this is key to understanding electronics and physics.

Key Components of a Simple Circuit

Every circuit has a few basic parts. Let's look at the main things you need for your first circuit:

1. Power Source: This gives the power to push the electric current. Batteries (AA, AAA, 9V) are common. So are power supplies and solar cells. The power source has a positive (+) and a negative (-) side. The voltage is how strong the "push" is.
2. Conducting Wires: These are the roads for the electric current. Copper wires are often used because they work well. Insulated wires are safer. They stop short circuits and shocks.
3. Load: This uses the electricity to do something. Light bulbs turn electricity into light. Resistors control the flow and make heat. LEDs give off light. And motors and speakers do their thing.
4. Switch (Optional): A switch lets you turn the circuit on or off. When it's closed (on), the circuit is complete. When it's open (off), the circuit stops.

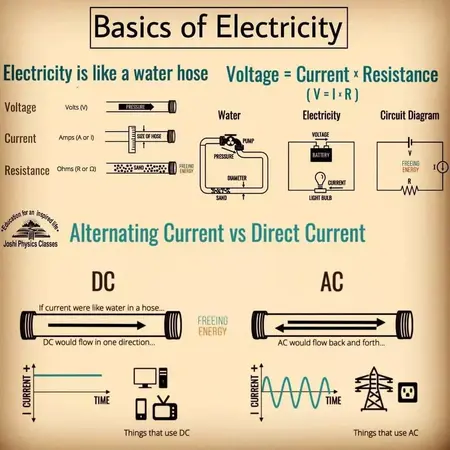

Understanding Electricity Basics

Before you build, let's go over some important stuff about electricity basics:

• Voltage (V): This is measured in volts. It's the "push" that moves the electrons. Think of it like water pressure. More voltage means more push.
• Current (I): This is measured in amperes (amps). It's how much electric charge flows. It's how many electrons pass a point each second.
• Resistance (R): This is measured in ohms. It stops the electric current from flowing too easily. It's like a narrow part in a water pipe.
• Ohm's Law: This is a big rule: V = I * R. Voltage equals current times resistance. It's important to know this to figure out the current and voltage in a circuit.

Safety Precautions

Working with electricity can be dangerous. Even though this is a simple circuit, you still need to be careful:

• Never work with household outlets unless you are a trained electrician. It's really dangerous.
• Use insulated wires. They stop short circuits and electric shocks.
• Check your circuit before you plug in the power.
• If you smell something burning or see smoke, unplug it right away.
• Work in a dry place.
• Keep water away from electricity.
• Watch kids if they're working with circuits.

Building Your First Simple Electric Circuit

Ready to build? We're going to make a circuit that lights up an LED (Light Emitting Diode). Here's what you need:

• A 3V battery (like two 1.5V AA batteries)
• An LED (a small one)
• A 220-ohm resistor (this protects the LED)
• Connecting wires (insulated)
• A breadboard (this makes it easier)

Step-by-Step Instructions

1. Find the LED terminals: LEDs have two sides. The anode (positive) is usually longer. The cathode (negative) is shorter.
2. Connect the resistor to the LED: Put one end of the resistor on the anode (positive) side of the LED. This stops too much current from going through the LED.
3. Connect the LED/resistor to the battery: Put the other end of the resistor on the positive (+) side of the battery. Put the cathode (negative) side of the LED on the negative (-) side of the battery.
4. Watch the LED: If you did it right, the LED should light up! If not, check the connections. Make sure the battery has power. And make sure the LED is facing the right way (anode to positive, cathode to negative).
5. Using a Breadboard (Recommended): A breadboard makes things easier. It has rows and columns that connect. You can put the LED and resistor in the breadboard to connect them.

Circuit Diagram

A circuit diagram is a picture of the circuit. It uses symbols for each part. Here's one for the LED circuit:

[Imagine a simple circuit diagram here showing a battery connected to a resistor in series with an LED. Positive terminal of battery connected to resistor, resistor connected to anode of LED, cathode of LED connected to negative terminal of battery]

Experimenting with Your Circuit

Now the fun starts! Try these things to learn more about electronics:

• Changing the Resistor Value: Use different resistors (like 100 ohms, 470 ohms, 1k ohm). See how the LED changes. A lower resistance makes the LED brighter, but it can also burn it out.
• Adding a Switch: Put a switch in the circuit between the battery and the resistor. See how the switch turns the LED on and off.
• Using Different LEDs: Try different colors of LEDs. They might need different voltages.
• Building a Series Circuit: Connect a few things (like two LEDs and two resistors) in a row. The current is the same through everything in a series circuit.
• Building a Parallel Circuit: Connect a few things (like two LEDs and two resistors) side by side. The voltage is the same across everything in a parallel circuit.

Advanced Concepts in Electricity and Electronics

When you know the basics, you can learn more about electricity and electronics:

• Transistors: These are like electronic switches. They're used in computers and other devices.
• Integrated Circuits (ICs): These are small circuits with lots of parts on one chip.
• Microcontrollers: These are small computers that can control things.
• Digital Logic: This uses logic gates (AND, OR, NOT, XOR) to do math with binary signals.
• Analog Circuits: These circuits use signals that change over time.

Resources for Further Learning

Want to learn more about electricity basics, science, physics, and electronics? There are lots of places to go:

• Online Tutorials: Khan Academy, Coursera, and edX have free courses.
• Books: Look for books about electricity, electronics, and physics.
• Online Forums: Reddit (r/electronics) and Stack Exchange (Electrical Engineering) are good places to ask questions.
• Electronics Kits: These have everything you need to build projects.
• Local Libraries: Libraries have books, magazines, and online resources.

Conclusion

Building a simple circuit is cool. It helps you understand electricity basics. When you know the basics, you can do lots of things in electronics and science. Be safe and have fun!
