How to Program Arduino

Arduino is super cool. It's like a box of LEGOs for electronics. You get hardware and software that's easy to use. Want to make something that interacts with the world? Arduino is your friend. Artists, designers, hobbyists – even pros love it. It's a simple way to make your electronic dreams real. I will guide you on how to program Arduino, so keep reading and enjoy.

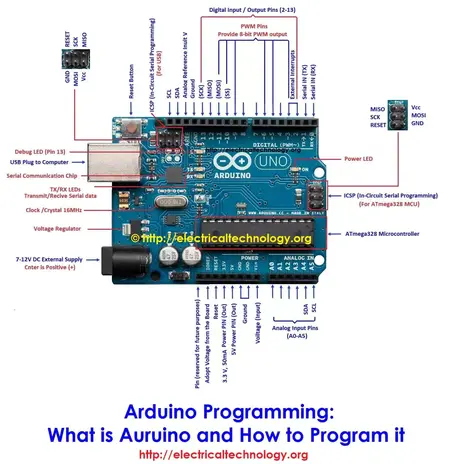

What is Arduino?

Think of Arduino as a brain in a box. It's a little computer board. It already knows how to talk to your computer. That means you don't need fancy tools to load code onto it. The Arduino software, or IDE, is where you write the code. It's like a simple word processor for electronics. Type your code, hit a button, and poof – it's on the board!

Why Choose Arduino?

• Easy to Learn: Even if you've never touched electronics before, Arduino is friendly.
• Cheap: The boards don't cost a lot. Great for experimenting!
• Works Everywhere: The software runs on Windows, Macs, and Linux.
• Free Stuff: The hardware and software are open source. That means you can change them if you want!
• Lots of Help: There's a HUGE online community. Got a question? Someone knows the answer.

Getting Started: Setting Up Your Arduino Environment

Before doing anything, let's set things up first. This means getting the Arduino software and connecting your board.

1. Download and Install the Arduino IDE

The Arduino IDE is where the magic happens. It's the software you'll use to write and send code to your board. Go to the Arduino website (arduino.cc) and download the right version for your computer. It's just like installing any other program.

2. Connect Your Arduino Board

Grab a USB cable. Plug one end into your Arduino, and the other into your computer. Bam! Your computer should see it. Sometimes, you might need to install drivers. Don't worry, the Arduino software usually includes them.

3. Select Your Board and Port in the Arduino IDE

Open the Arduino IDE. Go to Tools > Board. Pick the type of Arduino you have (like Uno or Nano). Then, go to Tools > Port. Choose the port your Arduino is connected to. Not sure which one? Unplug and plug your board back in. See which new port shows up.

Understanding the Arduino Programming Language

Arduino speaks a language based on C/C++. But it's easier. It uses simple words and tools. So it is simple to talk to the hardware. Let's check out the basics.

The Basic Structure of an Arduino Sketch

An Arduino program is called a "sketch." Every sketch has two parts. Check this out:

1. setup(): This runs once when the Arduino starts. Set things up here. Tell the Arduino what's what.
2. loop(): This runs over and over. This is where your main program goes.

Here's a simple example:

void setup() { // This runs once at the start pinMode(13, OUTPUT); // Pin 13 is for an LED } void loop() { // This runs forever digitalWrite(13, HIGH); // LED on! delay(1000); // Wait 1 second digitalWrite(13, LOW); // LED off! delay(1000); // Wait 1 second }

Variables and Data Types

Variables are like boxes. You can put numbers, letters, or words inside them. Each box has a type.

• int: For whole numbers (like -10, 0, 5).
• long: For bigger whole numbers.
• float: For numbers with a decimal (like 3.14).
• char: For single letters (like 'A').
• boolean: For true/false values.
• byte: For small numbers (0 to 255).
• string: For words and sentences.

Example:

int ledPin = 13; // The LED is on pin 13 int delayTime = 1000; // Wait for 1 second

Control Structures

These are like traffic lights for your code. They tell the code which way to go.

• if statement: "If" something is true, do this.
• else statement: "Else," do that.
• for loop: Do something a certain number of times.
• while loop: Do something as long as something is true.
• switch statement: Pick one thing to do from a list.

Example:

int sensorValue = analogRead(A0); // Read a sensor if (sensorValue > 500) { // If the sensor is high, turn on the LED digitalWrite(13, HIGH); } else { // If not, turn off the LED digitalWrite(13, LOW); }

Functions

Functions are like mini-programs. They do one thing. Use them to keep your code neat.

void blinkLed(int pin, int delayTime) { digitalWrite(pin, HIGH); // LED on delay(delayTime); digitalWrite(pin, LOW); // LED off delay(delayTime); } void loop() { blinkLed(13, 500); // Blink the LED }

Working with Digital and Analog I/O

Arduino can talk to the real world. It uses pins to connect to things like LEDs and sensors.

Digital I/O

Digital pins are like on/off switches. They can be HIGH (on) or LOW (off).

These functions are useful:

• pinMode(pin, mode): Tell the pin if it's an input or an output.
• digitalWrite(pin, value): Turn the pin on or off.
• digitalRead(pin): See if the pin is on or off.

Example:

int ledPin = 13; void setup() { pinMode(ledPin, OUTPUT); } void loop() { digitalWrite(ledPin, HIGH); // LED on delay(1000); digitalWrite(ledPin, LOW); // LED off delay(1000); }

Analog I/O

Analog pins can read voltage levels. They give you a number between 0 and 1023.

This function is commonly used:

• analogRead(pin): Read the voltage on the pin.

Example:

int sensorPin = A0; void setup() { Serial.begin(9600); // Start talking to the computer } void loop() { int sensorValue = analogRead(sensorPin); Serial.println(sensorValue); // Tell the computer the value delay(100); }

Essential Arduino Libraries

Libraries are collections of code that make things easier. They let you do cool stuff without writing a ton of code.

• Serial: Talk to your computer. Great for debugging.
• LiquidCrystal: Control LCD screens.
• Servo: Control servo motors.
• SPI: Talk to devices using SPI.
• Wire: Talk to devices using I2C.
• EEPROM: Save data even when the power is off.

Using Libraries

To use a library, put this at the top of your code:

#include <LiquidCrystal.h> // Tell the Arduino which pins are connected to the LCD LiquidCrystal lcd(12, 11, 5, 4, 3, 2); void setup() { lcd.begin(16, 2); // Set up the LCD (16 columns, 2 rows) lcd.print("hello, world!"); } void loop() { // Nothing to do here! }

Example Projects

Let's make some cool stuff!

1. Blinking an LED

The "Hello, World!" of Arduino. Blink an LED.

int ledPin = 13; // LED is on pin 13 void setup() { pinMode(ledPin, OUTPUT); // Pin 13 is an output } void loop() { digitalWrite(ledPin, HIGH); // LED on delay(1000); // Wait 1 second digitalWrite(ledPin, LOW); // LED off delay(1000); // Wait 1 second }

2. Reading an Analog Sensor

Read a sensor and show the value on your computer.

int sensorPin = A0; // Sensor on analog pin A0 void setup() { Serial.begin(9600); // Start serial } void loop() { int sensorValue = analogRead(sensorPin); // Read the sensor Serial.println(sensorValue); // Print the value delay(100); // Wait a bit }

3. Controlling a Servo Motor

Make a servo motor move.

#include <Servo.h> Servo myservo; // Make a servo object int pos = 0; // Where the servo should go void setup() { myservo.attach(9); // Servo is on pin 9 } void loop() { for (pos = 0; pos <= 180; pos += 1) { // Go from 0 to 180 degrees myservo.write(pos); // Tell the servo to move delay(15); // Wait a bit } for (pos = 180; pos >= 0; pos -= 1) { // Go from 180 to 0 degrees myservo.write(pos); // Tell the servo to move delay(15); // Wait a bit } }

Troubleshooting Common Issues

Stuck? Here's what to do.

• Code Errors: Check for typos. Missing ;? Wrong names?
• Uploading Problems: Did you pick the right board and port? Is the board plugged in?
• Hardware Problems: Check your wires. Are things connected right?
• Serial Problems: Make sure the speed in your code matches the speed in the serial monitor.

Advanced Arduino Programming Techniques

Want to go further?

• Interrupts: Respond to things right away.
• Timers: Do things at a certain time.
• Communication Protocols: Talk to other devices.
• Object-Oriented Programming: Write better code.
• Real-Time Operating Systems (RTOS): Do many things at once.

Conclusion

How to program Arduino is a cool skill. You can build all sorts of stuff. Start with the basics. Play with libraries. Try different projects. The Arduino community is there to help. So start building! Make your electronic ideas a reality!

Check out the official Arduino website for more info. Good luck! Have fun with Arduino!
