How to Replace Your Motherboard

Replacing Your Motherboard: It's Easier Than You Think!

Replacing a motherboard sounds scary, right? Like brain surgery for your computer. But it's not that bad. This guide will walk you through it, step by step. Even I did it, and I'm not exactly a tech wizard!

Get Ready! Preparation is Half the Battle

Before you even think about opening your computer, get organized. A little prep work goes a long way. Trust me on this one.

1. Back up your data! Seriously, this is HUGE. You don't want to lose all your photos and documents. Use an external hard drive or cloud storage – whatever works for you.
2. Gather your tools. You'll need a Phillips head screwdriver (maybe a few sizes), an anti-static wrist strap (to protect your computer from static electricity), and maybe a plastic spudger for prying things open. And good lighting!
3. New motherboard and parts. Make sure you have the right motherboard and any other parts you need (like the CPU or RAM). Double-check everything is compatible with your power supply and case.
4. Power down and unplug everything. Completely shut down your computer and unplug the power cord. Hold down the power button for a few seconds to drain any remaining power. Then, disconnect all those cables – mouse, keyboard, monitor, the whole shebang.
5. Ground yourself. Use that anti-static wrist strap and connect it to something metal, like your computer case. This prevents static electricity from frying your delicate components.

Taking Out the Old Motherboard: Slow and Steady Wins the Race

This part needs careful attention. Take your time. And take pictures! Seriously, take pictures of everything before you disconnect anything. It’ll save you headaches later.

1. Open the case. Check your computer case's manual for instructions on how to open it. Usually, it involves unscrewing panels.
2. Disconnect everything. Carefully unplug all cables connected to the motherboard: power cables, data cables (SATA, USB, etc.), and any expansion cards (like your graphics card). Remember those pictures? This is where they come in handy.
3. Remove expansion cards. Gently remove any expansion cards by pressing the release clip and pulling the card straight out. Note which way they faced—you’ll need that info later.
4. Remove the RAM. Gently push down on the clips holding the RAM in place and pull them out. Again, remember which way they were facing.
5. Remove the CPU cooler (if needed). Carefully remove the CPU cooler, following the manufacturer’s instructions. This usually means unscrewing things and disconnecting power cables.
6. Unscrew the motherboard. Find and remove all the screws holding the motherboard to the case. Support the motherboard from underneath so it doesn't fall.
7. Lift out the motherboard. Gently lift the motherboard out of the case, making sure everything is disconnected. Try not to bend it—that would be bad.

Installing the New Motherboard: It's Like a Really Detailed Lego Project

Okay, the old motherboard's out. Time for the new one!

1. Position the new motherboard. Carefully place the new motherboard in the case, aligning the standoffs with the mounting holes. This prevents short circuits.
2. Secure it. Insert and tighten the screws that hold the motherboard in place. Don't overtighten them!

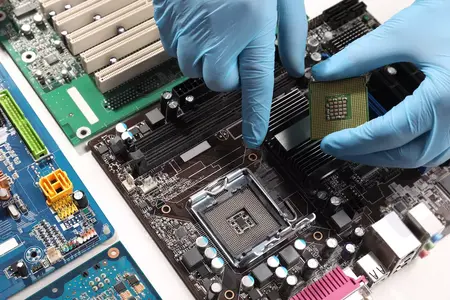

3. Install the CPU (if needed). Carefully install the CPU into its socket, making sure it's seated correctly. Check your motherboard manual for instructions.
4. Install the CPU cooler. Attach and secure the CPU cooler according to its instructions.
5. Install the RAM. Put the RAM modules into their slots, making sure they click into place. Refer to the motherboard manual for the correct orientation and slots.
6. Install expansion cards. Insert the expansion cards and press firmly until they're secure.
7. Reconnect everything. Carefully reconnect all the cables, using your photos as a guide. Make sure everything is properly connected.
8. Connect the power supply. Connect the power supply cables to the motherboard and other components.

Testing and Troubleshooting: Did It Work?

You've done it! Almost. Now, let's see if it actually works.

1. Power it on. Plug in the power cord and turn on your computer. Listen for any weird noises. If it doesn't turn on, double-check all your connections.
2. Check the BIOS. Enter the BIOS settings (usually by pressing Delete, F2, or F10 during startup) and make sure the system recognizes all your components.
3. Install the operating system (if needed). You might need to reinstall your operating system.
4. Install drivers. Install the necessary drivers for all your devices.
5. Test everything. Run some hardware and software tests to make sure everything works correctly.
6. Check temperatures. Use monitoring software to check your CPU and GPU temperatures to make sure everything is running cool.

Common Problems: And How to Fix Them

• Computer won't turn on? Check the power supply connections, the motherboard power switch, and the power cord.
• No display? Check the monitor cable, graphics card, and BIOS settings.
• System instability? Check RAM compatibility, reseat the RAM modules, and update the BIOS if needed.
• Overheating? Make sure you have adequate cooling and clean out any dust.
• Blue Screen of Death (BSOD)? Check for driver issues, faulty hardware, or software conflicts.

Replacing a motherboard isn't easy, but it's doable! Remember to take your time, be careful, and refer to your manuals often. If you get really stuck, don't hesitate to ask for help from someone more experienced.
