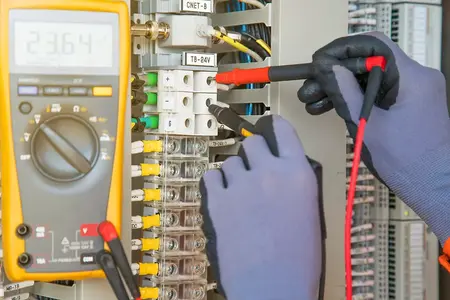

How to Use a Multimeter

Become a confident DIY electrician! This comprehensive guide teaches you how to use a multimeter for electrical troubleshooting, home maintenance, and safe DIY electrical repairs. Master voltage, current, and resistance checks – avoid costly callouts!

Electrical Troubleshooting: Get to Know Your Multimeter

Tired of pricey electrician bills for simple electrical problems? Learning to use a multimeter is a game-changer. It saves you money, time, and could even prevent dangerous situations. This guide shows you how to use a multimeter for basic electrical troubleshooting. It's all about safe DIY home repairs.

Why Learn to Use a Multimeter?

A multimeter is super handy for DIY electrical projects or home maintenance. Think of it as your electrical detective! It measures voltage, current, and resistance. This helps you find problems quickly, preventing more damage and saving you money. From a blown fuse to a short circuit, it helps you understand and fix things.

Multimeter Types and Features

There are different multimeters, each with its own strengths.

  • Analog Multimeters: These use a needle on a scale. They're simpler and cheaper, but not as precise.
  • Digital Multimeters (DMMs): These show readings digitally. They're more accurate and easier to read. Most people prefer these for troubleshooting.
  • Clamp Meters: These measure current without disconnecting wires. Great for high-current circuits. They usually do other things too.

Most multimeters have these:

  • Rotary Dial or Buttons: To select what you're measuring (voltage, current, resistance, etc.).
  • Input Jacks: To connect the test leads (probes).
  • Test Leads: Probes with colored tips (usually red and black) that touch the circuit.
  • Display: Shows the measurement.
  • Range Selector: Lets you choose the right measurement range (volts, amps, ohms).

Safety First! Electrical Safety Tips

Electrical work can be dangerous. Safety is key! Before you start:

  1. Turn off the power: This is the most important step. Turn off the breaker or unplug the appliance completely.
  2. Double-check: Use a non-contact voltage tester to make sure the power is really off. This prevents electric shock.
  3. Insulated tools: Make sure your multimeter and leads are properly insulated.
  4. Good lighting: A well-lit area helps prevent accidents.
  5. Proper clothing: No loose clothing or jewelry that could get caught.
  6. Don't work alone: Have someone nearby for safety.

Measuring Voltage

Voltage is the electrical pressure. Here's how to measure it:

  1. Select voltage (V) on your multimeter. Choose the right range (AC or DC, and the expected voltage).
  2. Connect the red lead to positive (+), black to negative (-). For AC, polarity doesn't matter.
  3. Touch the probes to the two points. The reading shows the voltage difference.

Measuring Current (Amperage)

Current is the flow of electricity. Measuring this needs you to break the circuit. This is more advanced and requires care.

  1. Turn off the power.
  2. Select current (A). Choose the right range (AC or DC), higher than expected.
  3. Disconnect a wire.
  4. Connect the multimeter in series. One lead to the wire, the other to the component.
  5. Turn the power back on. Observe the reading carefully.
  6. Turn off the power immediately.

Measuring Resistance (Ohms)

Resistance opposes the flow of current. Here's how to measure it:

  1. Turn off the power completely. Make sure it's disconnected.
  2. Select resistance (Ω).
  3. Connect the probes to the component's terminals. The reading is in ohms.

Troubleshooting Common Problems

Your multimeter can help you find problems like:

  • Blown Fuses: Check for continuity (zero ohms). A blown fuse shows infinite resistance.
  • Open Circuits: Infinite resistance means a break in the circuit. Trace the wires to find it.
  • Short Circuits: Very low resistance means a short circuit. This often means damaged wiring or a faulty component.
  • Faulty Appliances: Test for continuity and proper voltage to see what's wrong.

More Advanced Techniques

With more experience, try:

  • Diode testing
  • Capacitance testing
  • Frequency measurement

A good digital multimeter is a worthwhile investment. Online resources and classes can help you learn more.

Conclusion: Gaining Electrical Confidence

Knowing how to use a multimeter gives you confidence to handle basic electrical troubleshooting and repairs safely. Remember, safety is always first. Understanding voltage, current, and resistance saves you money and gives you a valuable skill. For complex work, always call a qualified electrician.
