How to Use a CNC Machine

So, you want to learn about CNC machines? Awesome! They're amazing tools, but can seem a bit intimidating at first. Think of it like learning to ride a bike – a little scary at first, but totally rewarding once you get the hang of it. This guide will walk you through everything.

CNC Machines: The Basics

CNC stands for Computer Numerical Control. Basically, it's a machine that uses computer instructions (G-code) to cut things super precisely. Imagine a super-accurate robot carving stuff! It can mill, route, drill, and even engrave all sorts of materials – wood, plastic, metal... you name it!

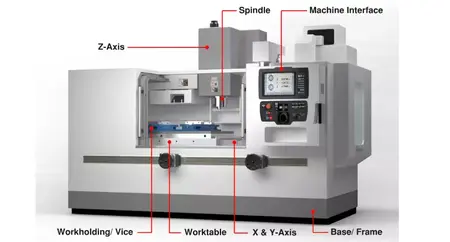

Here are the main parts:

• Control Unit: The brains of the operation. It reads the G-code and tells the machine what to do.
• Spindle: This is the rotating bit that does the cutting. Think of it like a really powerful drill bit.
• Axes (X, Y, Z): These are the directions the machine can move. Most have three, some have more for extra fancy stuff.
• Worktable: Where you put the material you want to cut.
• Cutting Tools: Different tools for different materials and jobs. Like having different screwdrivers for different screws.

Different Types of CNC Machines

There are several types, each with its own specialty:

• CNC Milling Machines: These are workhorses. They carve shapes out of your material.
• CNC Routers: Similar to milling machines, but often bigger and maybe not quite as precise.
• CNC Lathes: These spin the material while cutting it – perfect for cylindrical shapes.
• CNC Plasma Cutters: These use super-hot plasma to cut through metal. Think of it like a super-powered, super-precise lightsaber!

Getting Ready to CNC

Before you even turn the machine on, you need a plan. Think of it like baking a cake – you wouldn't just throw ingredients together, right?

1. Design Your Part

You'll need CAD software (like Fusion 360 or SolidWorks) to create a super-accurate 3D model of what you want to make. Get this step right, or your final product will be wrong. Accuracy is key!

2. Create G-Code

G-code is the secret language the CNC machine understands. Your CAD software usually has a CAM (Computer-Aided Manufacturing) module to translate your design into G-code. This code tells the machine exactly how to move the cutting tool.

3. Set Up the Machine

Secure your material to the worktable. Make sure it's super steady. Then, make sure the right cutting tool is in the spindle and tightened securely. Safety first!

4. Simulate the Toolpath

Most CAM software lets you do a “dry run” – a simulation of the cutting process. This is super important. It lets you see if anything will crash – saving you time, materials, and possibly injury!

Running the Machine

Okay, you're ready to cut! But remember – safety is paramount. Always wear safety glasses, hearing protection, and a dust mask.

1. Load the G-Code

Transfer your G-code to the machine, usually via USB or a network connection. Double-check you've got the right file!

2. Homing and Zeroing

The machine needs to know where it is. "Homing" sets the starting point. "Zeroing" sets the coordinates for your material.

3. Run the Program

Start the program. Watch carefully! Listen for any strange noises. If you hear anything unusual, stop immediately.

4. Post-Machining

Once it's done, carefully remove the piece. Inspect it. Clean up the machine.

Advanced Techniques (For When You're Feeling Fancy)

Once you're comfortable, try these advanced techniques:

• High-Speed Machining (HSM): Faster cutting for a smoother finish.
• Multi-Axis Machining: More axes = more complex shapes.
• Five-Axis Machining: Crazy complex shapes – think sculptures!
• Adaptive Control: The machine adjusts cutting based on what it's sensing.

Troubleshooting

Stuff happens. Here are some common problems:

• Tool Breakage: Usually means your cutting speed or tool is wrong.
• Inaccurate Parts: Check your design, G-code, and machine setup.
• Chatter: Unwanted vibrations. Adjust your settings.
• Workpiece Movement: Clamp it down tighter!

Safety First!

Seriously, safety is number one. Always:

• Wear PPE (Personal Protective Equipment).
• Inspect the machine before use.
• Never reach into a running machine.
• Keep your work area clean and organized.
• Follow the manufacturer's instructions.

Conclusion

CNC machining is a powerful skill. It takes practice, but with patience and attention to detail, you can create amazing things. Have fun, and be safe!
