How to Use a 3D Printer

3D Printing for Beginners: Let's Get Started!

Hey there! Want to learn 3D printing? It's easier than you think! I'll show you the ropes, from choosing your first printer to creating amazing things. This is your beginner's guide to 3D printing.

Picking Your First 3D Printer & Filament

First things first: you need a 3D printer! There are tons of options. Think about:

• Print size: How big do you want your creations to be?
• Printer type: FDM (Fused Deposition Modeling) is great for beginners. There are others, like SLA and SLS, but let's stick with FDM for now.
• Your budget: Printers range from super affordable to seriously pricey.
• How easy it is to use: Some are easier to learn than others – look for beginner-friendly options!

Next, you'll need filament, the plastic your printer uses. PLA is popular because it's easy to work with and it's biodegradable. There are other types, like ABS, PETG, and TPU, each with different properties. I started with PLA; it's a great place to begin.

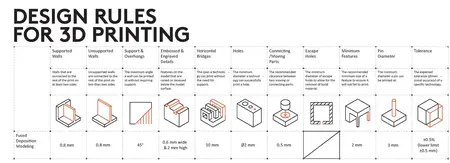

Designing for 3D Printing: It's Different!

Designing for 3D printing isn't like regular design. Here's the deal:

• Wall thickness: Make it too thin, and it'll break. Too thick, and you'll waste material. Find a happy medium.
• Overhangs and bridges: These need special attention. You might need support structures.
• Support structures: These help parts stick together while printing.
• File type: Use STL files. Your design software should be able to make these.
• Orientation: How you place your design matters! Experiment to see what works best.

Tinkercad, Fusion 360, and Blender are popular design programs. Start simple and work your way up.

Slicing Your Design: Getting Ready to Print

Slicing software turns your design into instructions your printer understands. This creates a G-code file. It's like a recipe for your printer.

Cura, PrusaSlicer, and Simplify3D are good options. You can tweak settings like:

• Layer height: Thinner layers mean finer details, but it takes longer.
• Infill: How much plastic is inside the print. More infill = stronger, but heavier.
• Nozzle temperature: This is crucial – get it wrong, and your print will be a mess.
• Print speed: Faster is quicker, but sometimes less precise.
• Support settings: Adjust these for overhangs.

Level Up Your 3D Printing

Once you're comfortable, try these:

1. Calibration: Keep your printer tuned up! This means leveling the bed, checking the extruder, etc.
2. Enclosure: An enclosure helps keep things at the right temperature, especially for some plastics.
3. Post-processing: Sanding, painting – make your prints look amazing!
4. Dual extrusion: Use two colors or materials at once for cool effects!
5. Custom G-code: This is for advanced users who want total control.

Troubleshooting: What to Do When Things Go Wrong

Stuff happens! Here are some common problems and solutions:

• Warped prints: The print sticks poorly to the bed. Make sure the bed is level and clean.
• Stringing/oozing: Excess plastic. Adjust retraction settings in your slicer software.
• Layer adhesion problems: Layers don't stick. Check your temperature settings.
• Clogged nozzle: Clean or replace your nozzle.
• Inconsistent layers: Could be a problem with the extruder or your filament. Check both!

Beyond the Basics: What Can You Make?

3D printing is used everywhere!

• Manufacturing: Custom parts and tools.
• Healthcare: Prosthetics and implants.
• Education: Hands-on learning.
• Art: Sculptures and jewelry.
• Aerospace: Lightweight parts for planes and rockets.

So there you have it! This guide gives you a great starting point. Now get out there and start printing!
