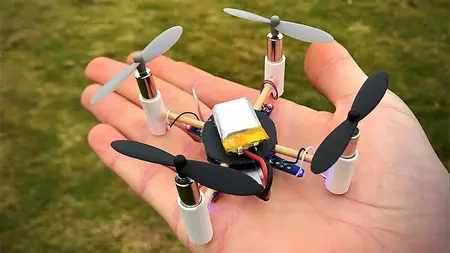

How to Make a Simple Drone

Building your own drone can be a rewarding and exciting project. It allows you to delve into the world of electronics, programming, and aerodynamics, while creating a unique and personalized flying machine. While it may seem daunting at first, this guide will walk you through the process of building a simple drone, suitable for beginners. You'll learn about essential components, assembling the drone, and even programming it for basic flight maneuvers.

Choosing the Right Parts

The first step in building your drone is selecting the right components. This includes the frame, motors, electronic speed controllers (ESCs), battery, flight controller, receiver, and transmitter.

1. Frame

The frame provides the structural support for your drone. It's typically made from lightweight materials like carbon fiber or plastic. There are many frame designs available, ranging from simple to complex. For beginners, a pre-built quadcopter frame is recommended. These are readily available online and come with all the necessary mounting points for other components. Look for frames with a good balance of strength and weight.

2. Motors

Motors power your drone's propellers. The size and type of motors determine the drone's lift capacity and flight performance. Brushless motors are preferred for drones due to their efficiency and longevity. When choosing motors, consider the following factors:

• KV rating: This indicates the motor's speed per volt. Higher KV motors provide greater speed but lower torque.
• Thrust: Measured in grams, thrust refers to the amount of lifting force a motor can generate. Consider the weight of your drone to choose motors with adequate thrust.
• Propeller size: Matching the motor's KV rating and thrust with the correct propeller size is crucial for optimal performance.

3. Electronic Speed Controllers (ESCs)

ESCs act as the bridge between your flight controller and motors. They receive signals from the flight controller to control the speed and direction of the motors. When selecting ESCs, ensure they are compatible with your motors and battery voltage. Factors to consider include:

• Amperage rating: This determines the maximum current the ESC can handle, which should exceed the motor's amperage draw.
• Voltage rating: The ESC's voltage rating should match the battery voltage.
• Number of ESCs: You'll need one ESC for each motor on your drone.

4. Battery

The battery powers your drone. Lithium-polymer (LiPo) batteries are commonly used due to their high power density. The battery's capacity (mAh) determines its flight time. A higher mAh rating signifies a longer flight time. Important factors include:

• Voltage: LiPo batteries are typically available in 3.7V, 7.4V, or 11.1V. The voltage should match the ESCs and motors.
• Capacity: The higher the mAh rating, the longer the flight time.
• C rating: This indicates the battery's discharge rate. A higher C rating allows for faster power delivery.

5. Flight Controller

The flight controller is the brain of your drone. It receives signals from the receiver and controls the ESCs to adjust the motors' speed and direction. A flight controller includes an accelerometer, gyroscope, and barometer for stabilization and orientation. Popular flight controllers include the Arduino Nano, STM32F4xx, and Pixhawk.

6. Receiver

The receiver receives signals from the transmitter and relays them to the flight controller. It works in conjunction with the flight controller to interpret the pilot's commands. The type of receiver you need depends on your transmitter. Ensure compatibility between the receiver and transmitter.

7. Transmitter

The transmitter sends commands to the drone. It can be a simple remote control or a more advanced ground station. You'll need to select a transmitter that is compatible with your receiver.

Assembling the Drone

Once you have all the parts, you can start assembling your drone. This process involves connecting the various components and mounting them on the frame. The exact steps may vary depending on the specific components you choose, but here's a general guideline:

1. Mount the Motors

Start by mounting the motors on the frame. Use the provided mounting screws and nuts. Ensure the motors are securely fastened and that their propeller shafts are aligned with the frame's axis.

2. Connect the ESCs to the Motors

Connect the ESCs to the motors using the appropriate connectors. Most ESCs have three wires: a positive (+) wire, a negative (-) wire, and a signal wire. The positive and negative wires connect to the motor's terminals, while the signal wire connects to the flight controller.

3. Connect the ESCs to the Flight Controller

Connect the ESCs to the flight controller. The flight controller will have dedicated ports for each ESC. Consult the flight controller's documentation for the correct port assignments.

4. Connect the Battery

Connect the battery to the ESCs. Most ESCs have a dedicated battery connector. Ensure the battery's polarity is correctly aligned with the ESCs' connections.

5. Connect the Receiver

Connect the receiver to the flight controller. The receiver will have dedicated ports for signal inputs and power supply. Consult the receiver and flight controller's documentation for the correct port assignments.

6. Mount the Flight Controller

Mount the flight controller on the frame using the provided mounting points. Ensure the flight controller is securely fastened and that its orientation is aligned with the frame's axis.

7. Secure the Battery

Secure the battery to the frame. You can use velcro straps or other mounting methods to keep the battery in place.

Programming the Drone

Once you have assembled your drone, you need to program it for flight. This involves configuring the flight controller and writing code for basic flight maneuvers. There are several software options for programming drones, including:

1. Arduino IDE

The Arduino IDE is a popular software development environment for programming microcontrollers, including flight controllers. It provides a user-friendly interface for writing code and uploading it to the flight controller. You can find numerous libraries and examples for drone programming in the Arduino IDE.

2. Mission Planner

Mission Planner is a powerful software tool for configuring and programming drones that use Pixhawk flight controllers. It offers a wide range of features, including flight planning, parameter tuning, and data logging.

3. QGroundControl

QGroundControl is a comprehensive ground station software for drones. It provides features for mission planning, flight data analysis, and firmware updates. It supports various flight controllers, including Pixhawk and ArduPilot.

Basic Flight Code

Here's a simple example of code for a basic flight maneuver, using the Arduino IDE and an Arduino Nano flight controller:

#include <Servo.h>

Servo servo1; // Create servo object for motor 1
Servo servo2; // Create servo object for motor 2
Servo servo3; // Create servo object for motor 3
Servo servo4; // Create servo object for motor 4

void setup() {
  servo1.attach(9); // Assign motor 1 to pin 9
  servo2.attach(10); // Assign motor 2 to pin 10
  servo3.attach(11); // Assign motor 3 to pin 11
  servo4.attach(12); // Assign motor 4 to pin 12
}

void loop() {
  // Forward flight
  servo1.write(1500); // Set motor 1 to mid-throttle
  servo2.write(1500); // Set motor 2 to mid-throttle
  servo3.write(1500); // Set motor 3 to mid-throttle
  servo4.write(1500); // Set motor 4 to mid-throttle
  delay(1000); // Wait for 1 second

  // Hover
  servo1.write(1000); // Reduce motor 1 to low throttle
  servo2.write(1000); // Reduce motor 2 to low throttle
  servo3.write(1000); // Reduce motor 3 to low throttle
  servo4.write(1000); // Reduce motor 4 to low throttle
  delay(1000); // Wait for 1 second
}

This code defines four servo objects for each motor and assigns them to specific pins on the Arduino Nano. It then sets the motors to mid-throttle for forward flight, followed by reducing the throttle to low for hovering. The delay() function is used to pause the execution of the code for a specified duration.

Safety Precautions

Drone building and flying can be a fun and rewarding experience. However, it's important to prioritize safety. Here are some essential safety precautions to keep in mind:

• Always fly in an open, uncluttered area: Avoid flying near trees, power lines, or buildings.
• Don't fly in high winds: Strong winds can make it difficult to control the drone and may damage it.
• Keep the drone within your line of sight: Always keep the drone in your field of view, so you can monitor its flight and avoid collisions.
• Be aware of the drone's battery level: Avoid flying the drone when the battery is low. A depleted battery can lead to unexpected landings or damage to the drone.
• Be respectful of others: Avoid flying your drone in public areas where it might disturb others or invade their privacy.
• Follow local regulations: Check with your local authorities for any regulations regarding drone operation.

Conclusion

Building your own drone is a great way to learn about electronics, programming, and flight control. It's a rewarding experience that allows you to design and create your own unique flying machine. By following this guide, you can start your journey into the world of drone building and take to the skies with your own homemade drone.

Remember to prioritize safety and always follow local regulations. Have fun building, flying, and exploring the possibilities of your own drone!
