How to Use a Network Switch

In the bustling world of technology, data communication reigns supreme. From our homes to businesses, networks have become the backbone of modern life, facilitating the seamless flow of information. At the heart of these networks often lies a crucial component – the network switch.

What is a Network Switch?

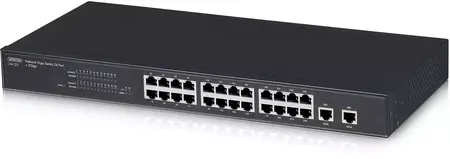

A network switch is a device that acts as a central hub for connecting multiple network devices, such as computers, printers, and servers, to form a local area network (LAN). Unlike a hub, which simply broadcasts data to all connected devices, a switch intelligently directs data traffic to its intended recipient, ensuring efficient communication and minimal network congestion.

Key Features of a Network Switch:

• Enhanced Network Performance: By directing data only to the intended device, switches eliminate the broadcast collisions that occur in hub-based networks, resulting in significantly faster and more efficient data transfer.
• Increased Bandwidth: Switches support multiple simultaneous connections, allowing devices to communicate with each other without compromising network speed.
• Network Segmentation: Switches can create separate network segments, allowing for better security and traffic management. This is especially beneficial in larger networks where specific devices or groups need to be isolated.
• Quality of Service (QoS): Advanced switches offer QoS features that prioritize certain types of traffic, ensuring that critical applications like video conferencing or online gaming receive the bandwidth they need, even during periods of high network activity.

How to Use a Network Switch: A Step-by-Step Guide

Setting up and using a network switch is a relatively straightforward process. Here's a step-by-step guide for beginners:

1. Gather Your Equipment:

• Network switch
• Ethernet cables
• Network devices to connect (computers, printers, etc.)
• Router (if connecting to the internet)

2. Connect the Switch to Your Router:

If you're connecting the switch to the internet, use an Ethernet cable to connect the switch's "WAN" port (or any unlabeled port if the switch doesn't have a dedicated WAN port) to your router's LAN port.

3. Connect Your Devices to the Switch:

Use Ethernet cables to connect each of your network devices to the switch's available ports. Most switches have multiple ports, typically ranging from 4 to 48 ports, depending on the model.

4. Power On the Switch:

Plug the switch into a power outlet and turn it on. Most switches have a power indicator light that will illuminate when the switch is powered on and functioning.

5. Configure Your Devices:

You may need to configure your devices to connect to the switch, depending on your operating system and network settings. Usually, the devices will automatically recognize the switch and connect to the network.

6. Test Your Network:

Once all devices are connected, test the network by browsing the internet, accessing shared files, or printing documents. If everything works as expected, you've successfully set up your network switch.

Types of Network Switches

Network switches come in various types, each offering specific features and capabilities. Here are some common types:

1. Unmanaged Switches:

Unmanaged switches are the simplest type of switch, requiring no configuration or management. They automatically connect devices and handle data traffic without user intervention. These switches are suitable for basic home or small office networks.

2. Managed Switches:

Managed switches provide more advanced features and control over network traffic. They can be configured using a web interface or command-line interface (CLI) to set VLANs, QoS, and other network settings. Managed switches are ideal for larger networks or those requiring more sophisticated network management capabilities.

3. Smart Switches:

Smart switches offer a balance between unmanaged and managed switches. They provide some basic management features, such as port mirroring and link aggregation, while remaining relatively simple to configure. Smart switches are a good choice for mid-sized networks or those with moderate network management needs.

4. Layer 2 Switches:

Layer 2 switches operate at the data link layer of the OSI model, focusing on MAC address-based forwarding. They are primarily used for local network connectivity and offer features such as VLANs and spanning tree protocol (STP).

5. Layer 3 Switches:

Layer 3 switches operate at both the data link and network layers of the OSI model, supporting IP routing functionality. They can act as both switches and routers, enabling communication between different subnets or networks. Layer 3 switches are typically used in larger enterprise networks where complex routing is required.

Benefits of Using a Network Switch

Implementing a network switch offers numerous benefits, including:

• Improved Network Performance: Switches eliminate data collisions and offer dedicated bandwidth for each connected device, resulting in faster data transfer speeds and reduced network latency.
• Increased Bandwidth: Switches can handle multiple simultaneous connections, allowing devices to communicate without affecting each other's performance.
• Network Segmentation: Switches enable network segmentation, enhancing security by isolating sensitive data and limiting the impact of network issues to specific segments.
• Enhanced Security: Features such as VLANs and port security on managed switches help isolate traffic and prevent unauthorized access to network resources.
• Scalability: Switches can be easily expanded by adding more ports or connecting multiple switches together, allowing for network growth as needs change.

Troubleshooting Common Network Switch Issues

While network switches are generally reliable, occasionally you may encounter issues. Here are some common problems and solutions:

1. No Connectivity:

• Check power supply: Ensure the switch is plugged in and turned on.
• Verify cable connections: Make sure all Ethernet cables are securely connected to both the switch and devices.
• Check device settings: Verify that the device's network settings are configured correctly, including IP address, subnet mask, and default gateway.
• Troubleshoot router connection: If connecting to the internet, ensure the router is functioning properly and connected to the internet.

2. Slow Network Speed:

• Check for network congestion: If there are many devices using the network simultaneously, it may cause slowdowns. Consider upgrading to a switch with more ports or a faster model.
• Optimize network settings: Check for any bandwidth limitations or QoS settings that may be restricting network speed.
• Check cable quality: Ensure all Ethernet cables are of good quality and not damaged.

3. Network Connectivity Issues:

• Check for faulty cables: Replace any damaged or suspect cables.
• Reset the switch: Most switches have a reset button. Pressing it will restore the switch to its factory settings.
• Contact your network administrator or switch manufacturer: If the issue persists, contact a qualified professional for further assistance.

Conclusion

A network switch is an essential component for any modern network, providing enhanced performance, scalability, and security. By understanding the fundamentals of network switches and their operation, you can optimize your network for efficiency and reliability. Whether you're a home user or a business professional, a well-configured network switch can make a significant difference in your day-to-day connectivity and overall network experience.

This comprehensive guide has provided a clear overview of how to use a network switch, covering various aspects from setup and configuration to troubleshooting common issues. With the right knowledge and a few simple steps, you can successfully leverage the benefits of network switches and create a robust and efficient network for your needs.
