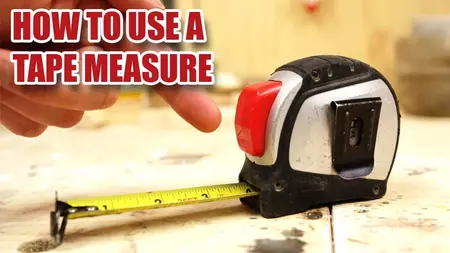

How to Use a Tape Measure

Whether you're embarking on a home improvement project, tackling a DIY task, or simply need to measure something for a specific purpose, a tape measure is an indispensable tool. While seemingly straightforward, understanding how to use a tape measure effectively can ensure accurate measurements and prevent costly errors. This comprehensive guide will equip you with the knowledge and skills to confidently use a tape measure for any project, from simple tasks to complex constructions.

Understanding the Parts of a Tape Measure

Before diving into measuring techniques, it's essential to familiarize yourself with the components of a tape measure:

• Hook: The metal hook at the end of the tape, used to secure the starting point of your measurement.
• Blade: The flexible, graduated strip of metal that extends from the tape measure's case.
• Case: The housing for the tape measure, containing the spring mechanism that retracts the blade.
• Lock Button: A button on the case that locks the blade at a desired length.
• Graduations: The markings on the blade, indicating inches, feet, or centimeters, depending on the tape measure's scale.

Basic Measuring Techniques

1. Measuring a Straight Line

Measuring a straight line is the fundamental technique of tape measure usage. Here's how to do it:

1. Hook the end: Hook the end of the tape measure onto the starting point of the line.
2. Extend the blade: Pull the blade out until it reaches the end point of the line.
3. Lock the blade: Use the lock button to hold the blade in place at the desired length.
4. Read the measurement: Read the measurement on the blade where it aligns with the end point of the line.

When measuring straight lines, it's crucial to ensure the tape measure is held flat and straight along the line to prevent any errors due to bending or warping.

2. Measuring a Curved Surface

Measuring a curved surface requires a slightly different approach. Here's how to get an accurate measurement:

1. Mark the starting point: Place the hook of the tape measure at the starting point of the curve.
2. Follow the curve: Gently curve the tape measure along the surface of the curved object.
3. Mark the ending point: Note the point on the tape measure where it aligns with the ending point of the curve.
4. Read the measurement: Read the measurement on the blade at the marked point.

Remember to keep the tape measure taut but not stretched excessively to ensure an accurate measurement.

3. Measuring Interior Dimensions

When measuring the interior dimensions of a space, such as a room or a cabinet, it's important to measure from the inside walls to the inside walls.

1. Position the hook: Place the hook of the tape measure against the inside wall of the space.
2. Extend the blade: Extend the blade across the space to the opposite inside wall.
3. Read the measurement: Read the measurement on the blade where it aligns with the opposite inside wall.

4. Measuring Exterior Dimensions

To measure the exterior dimensions of an object, such as a piece of wood or a countertop, you need to measure from the outside edge to the outside edge.

1. Position the hook: Place the hook of the tape measure at the outside edge of the object.
2. Extend the blade: Extend the blade along the object's exterior to the opposite outside edge.
3. Read the measurement: Read the measurement on the blade where it aligns with the opposite outside edge.

Advanced Measuring Techniques

1. Measuring to the Center of a Hole or Object

Sometimes you need to measure to the center of a hole or object. Here's how to do it:

1. Measure the diameter: Measure the diameter of the hole or object using the tape measure.
2. Divide by two: Divide the diameter by two to find the radius.
3. Measure to the center: Measure from the edge of the hole or object to the center point, using the radius you calculated.

2. Measuring Angles

While a tape measure doesn't directly measure angles, you can use it to determine the length of the sides of a triangle and then use trigonometric functions (sine, cosine, tangent) to calculate the angles. For simpler angles, you can use a protractor for more direct measurement.

3. Measuring for Cuttings

When measuring for cuttings, it's important to account for the thickness of the material being cut. For example, if you're cutting a piece of wood to fit into a space, you'll need to subtract the thickness of the wood from your measurement.

Tips for Accurate Measurements

• Use a level: Ensure the tape measure is level with the surface you're measuring to avoid errors due to slope.
• Keep the tape measure taut: Maintain a steady tension on the tape measure to prevent sag or stretch.
• Double-check measurements: It's always a good practice to double-check your measurements, especially when dealing with critical dimensions.
• Use a pencil to mark: Mark your measurements on the material with a pencil to avoid confusion or forgetting the precise location.
• Consider the hook: The hook on the tape measure has a small amount of play, so keep in mind that it might add or subtract a fraction of an inch from your measurement, depending on how it's positioned.

Troubleshooting Common Problems

1. The tape measure won't lock:

This could be due to a faulty lock button. Check for any debris or dirt that may be obstructing the button. If it's still not working, it might need to be replaced.

2. The blade retracts too quickly:

This is usually caused by a weak spring mechanism. Try cleaning the spring or contacting the manufacturer for a replacement.

3. The graduations on the blade are faded or missing:

This can happen with frequent use or exposure to harsh conditions. If the graduations are too faded or missing to be legible, consider purchasing a new tape measure.

Choosing the Right Tape Measure

The best tape measure for you will depend on your specific needs and preferences. Here are some factors to consider:

• Length: Standard tape measures are typically 25 feet long, but you can find shorter and longer options depending on your project requirements.
• Scale: Choose a tape measure with the scale that's most convenient for your tasks. Inches and feet are common in the United States, while centimeters and meters are used in metric countries.
• Material: Tape measures can be made of various materials, including steel, fiberglass, and plastic. Consider the durability and flexibility needed for your project.
• Features: Some tape measures offer additional features, such as a built-in level, a blade lock that allows for one-handed operation, or a magnetic hook for easier attachment to metal surfaces.

Conclusion

Using a tape measure effectively is a valuable skill for anyone involved in DIY projects, home improvement, or other tasks that require precise measurements. By understanding the components of a tape measure, mastering basic and advanced measuring techniques, and following tips for accuracy, you can confidently tackle any project and avoid costly errors. Remember to always double-check your measurements and choose the right tape measure for your needs.

Now that you're equipped with the knowledge and skills to use a tape measure like a pro, get out there and start measuring!
